Wireless Alarm – Spare Parts

Name: Wireless Alarm - Spare Parts
SKU: 445-VARIOUS
Availability: InStock

Units of Measurement: EACH

SKU: 445-VARIOUS Categories: Falls Prevention & Protection Equipment, Falls Prevention Alarms Equipment, New Products, Restraints & Safety Equipment, Wheelchair Accessories

From AUD $25.00

Option

Clear

Description

See the FAQ tab to compare the differences between our wired and wireless alarms.

WHAT IS THIS PRODUCT?

Wireless Alarm – Spare Parts are available for the Wireless Chair Alarm – Complete and Wireless Floor Alarm – Complete.

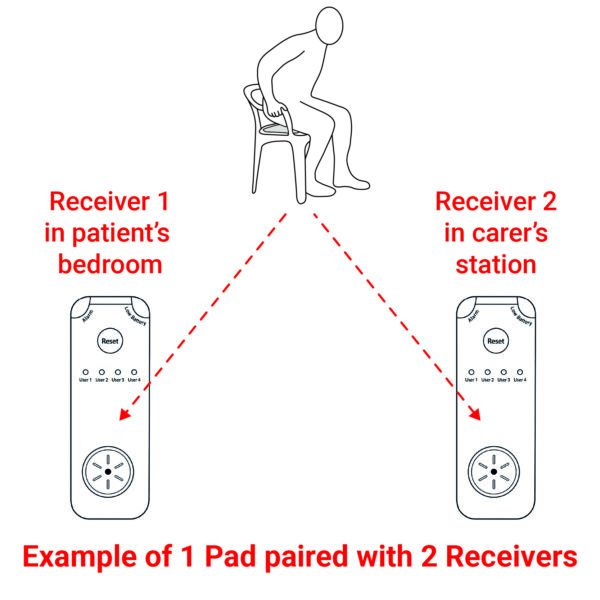

Spare Alarm Pads are available if an existing Pad becomes damaged, or for people who want additional Pads to to pair with an existing Receiver. Additional electronic parts are provided for options such as pairing one Alarm Pad with multiple Receivers or up to four Alarm Pads with one Receiver.

Alarm Pads must be connected to a Transmitter and paired with a Receiver in order to function. If buying an additional Pad to connect to an existing Receiver, you will also need to purchase a Transmitter from the drop-down menu above.

Parts Available:

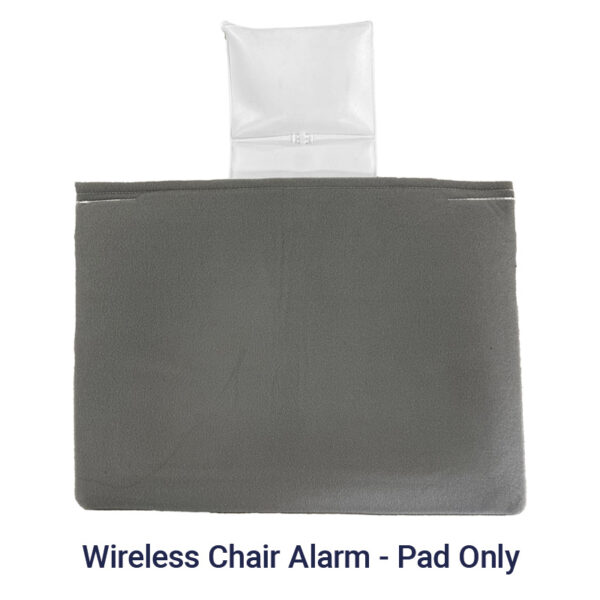

Wireless Chair Alarm – Pad Only	To replace a damaged Pad, or use as an extra Pad with an existing Receiver.

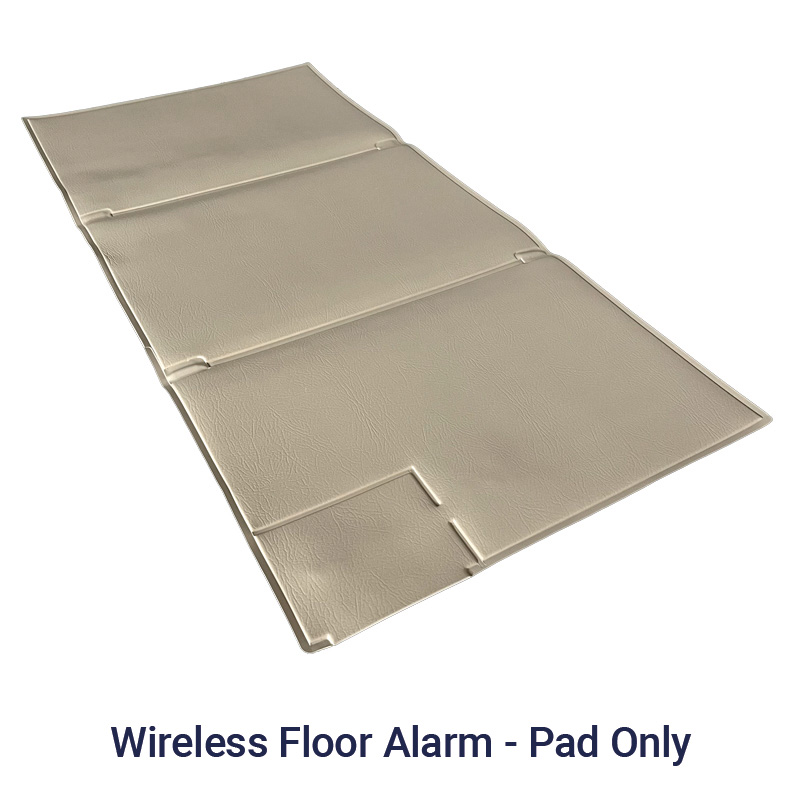

Wireless Floor Alarm – Pad Only	To replace a damaged Pad, or use as an extra Pad with an existing Receiver.

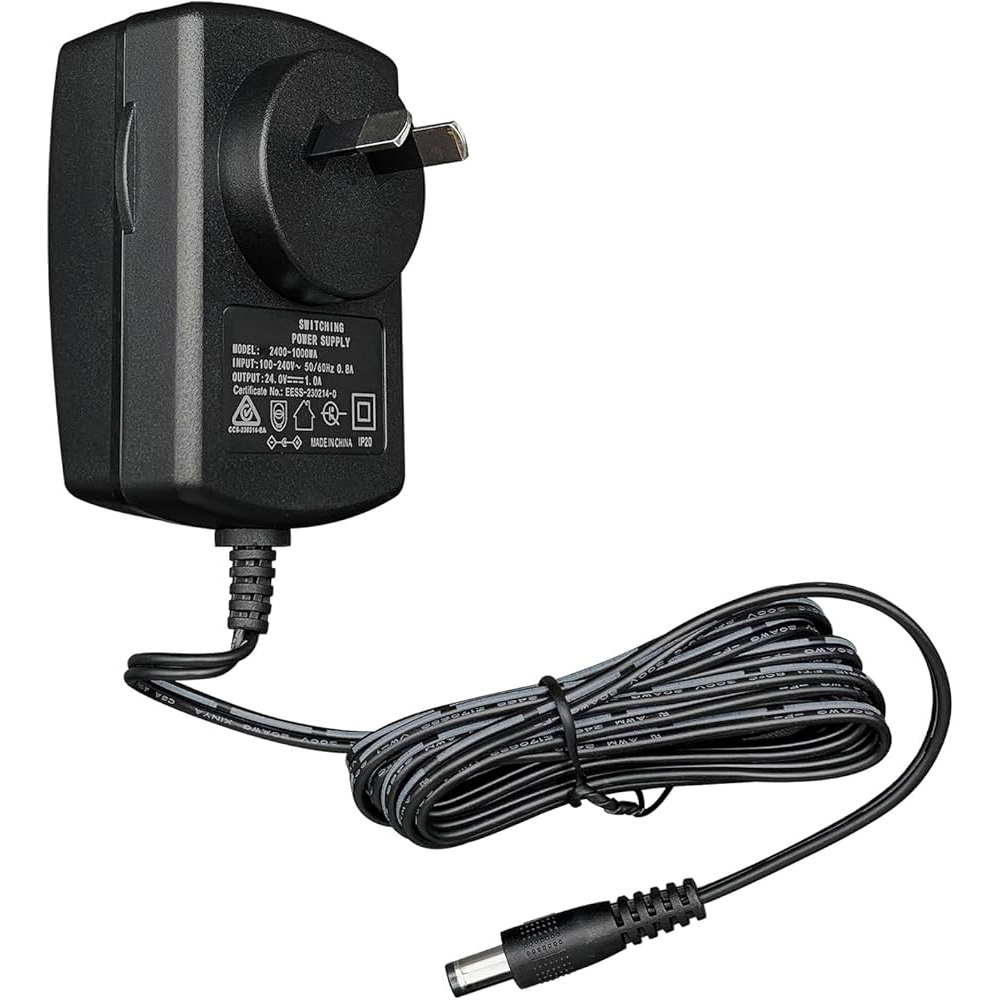

Wireless Alarm – Power Adapter	For use with a Receiver – overrides the AA batteries.

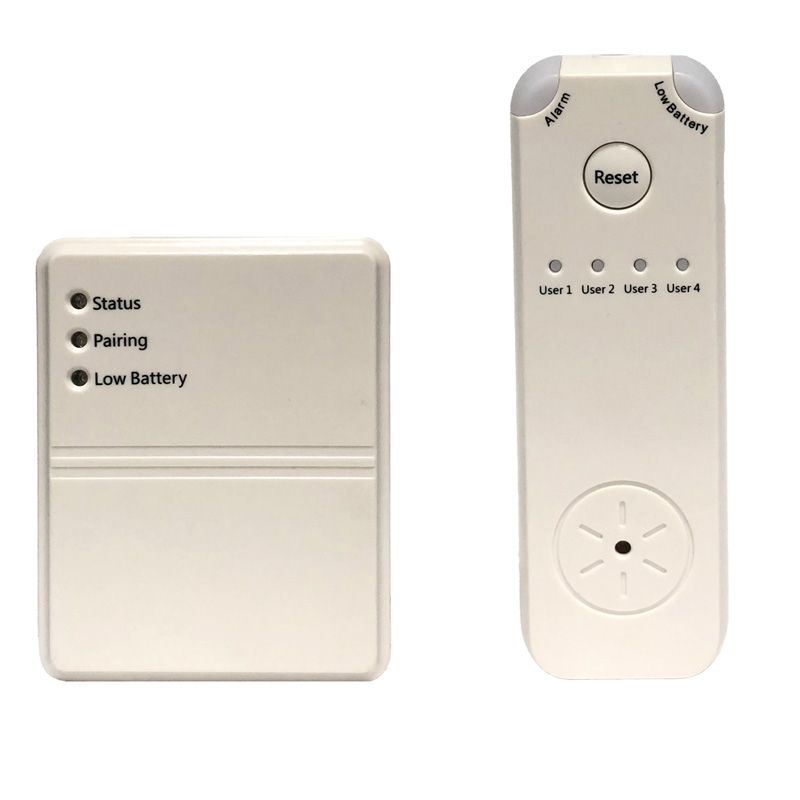

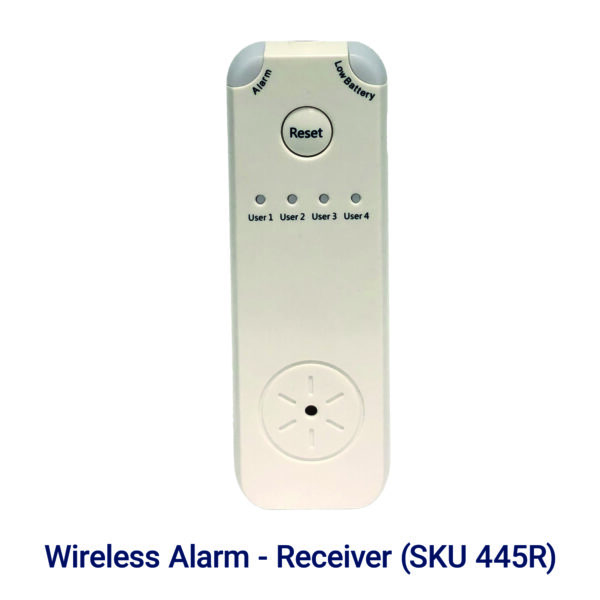

Wireless Alarm – Receiver	Includes AA batteries, two clips, Nurse Call Plug, and wall mount.

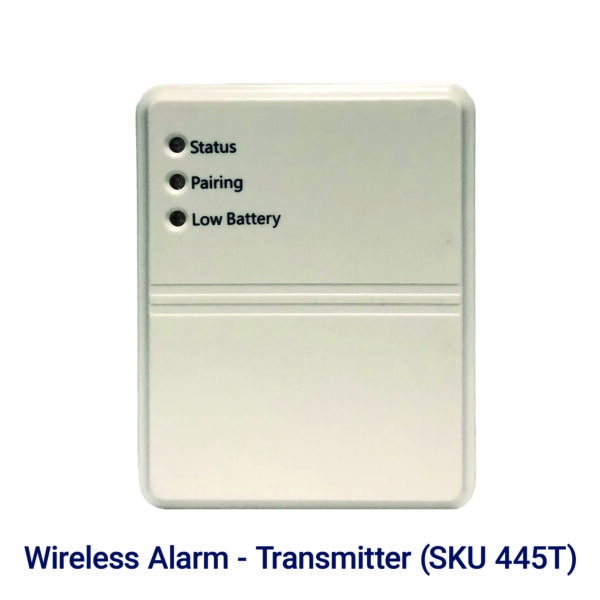

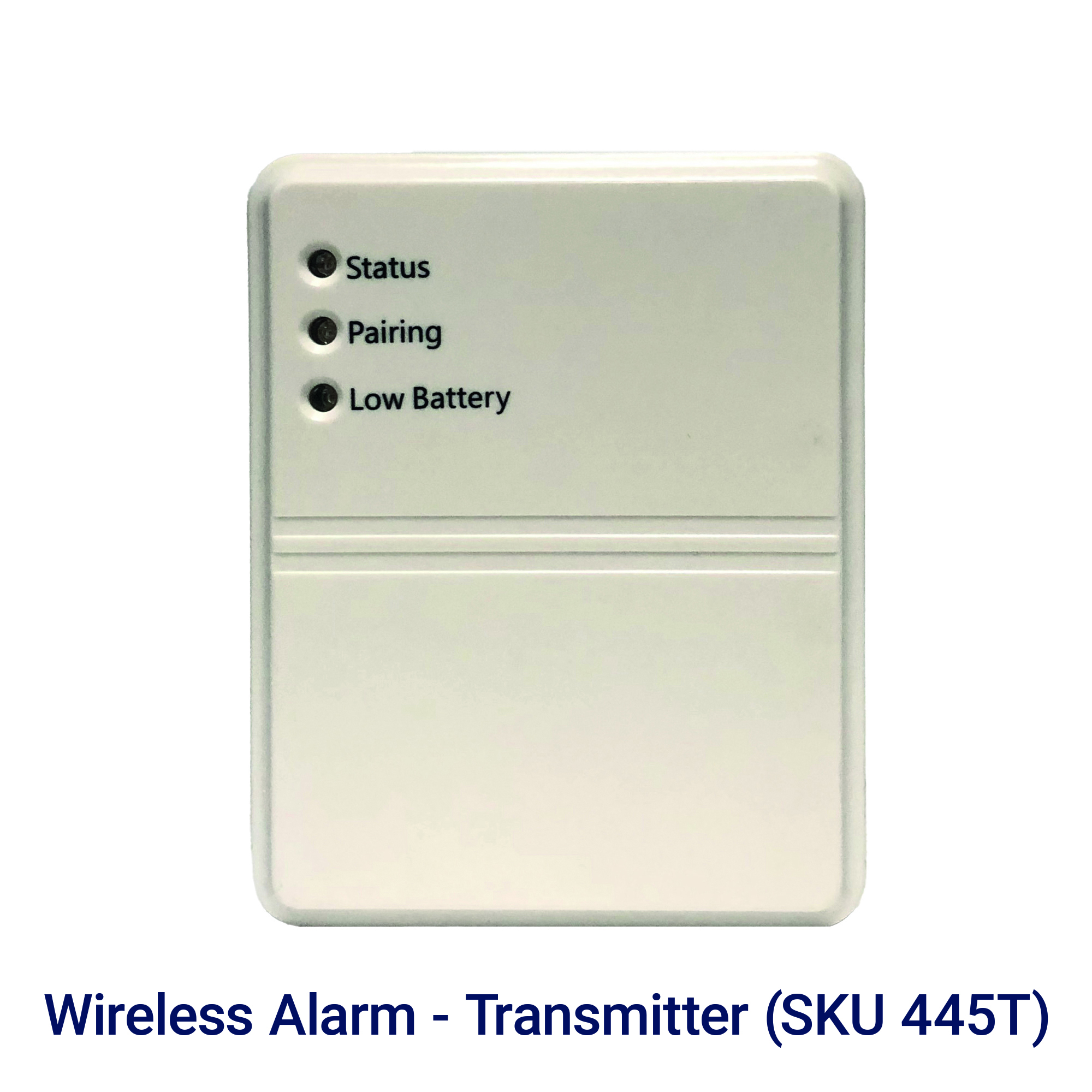

Wireless Alarm – Transmitter	Includes AAA batteries, clip, and mounting bracket.

WHO IS THIS PRODUCT SUITABLE FOR?

Caregivers in hospitals, aged care, or home care who need to monitor patients.
People at risk of falls, particularly those who may try to get up unassisted.
Facilities using Nurse Call Paging Systems, as the Alarm should integrate with existing alerts.

BRIEF INSTRUCTIONS FOR USE

Please be aware that settings will need to be adjusted if using more than one Transmitter, Receiver, or Alarm Pad.

Chair Pads and Floor Pads can generally be used with the same Receiver, as both can be set for immediate alarm activation.

Use the switch inside the Receiver to select audible or silent alerts. This enables people to choose between notifications via the Receiver, through a Nurse Call Paging System, or through both.

The Receiver can be carried in a bag or pocket, clipped to pants or belt, clipped on the included wall mount, or hung from bed rails or wheelchair handles etc.

WHAT IS THIS PRODUCT MADE FROM?

Wipeable material, plastic, various electrical components.

Wireless Alarm Kits (Pad + Transmitter + Receiver) are available on these pages:

Technical

TECHNICAL SPECS.

Usable Weight Range: 45–140kg / 99–309 lb (Assess with patient)
Operating Frequency: 433.92MHz
Operating (open linear) Distance: Approx. 50 metres / 165 feet
Battery Life: Approx. 8 months

STOCK KEEPING UNIT (SKU), SIZE, WEIGHT, GLOBAL TRADE ITEM NUMBER (GTIN)

SKU	DETAILS	SIZE	WEIGHT	GTIN
445C	Wireless Chair Alarm – Pad Only	38cm x 26cm / 15″ × 10″	0.35kg / 0.77lb	9349145011306
445F	Wireless Floor Alarm – Pad Only	182cm x 65cm / 72″ × 26″	2.3kg / 5lb	9349145011313
445P	Wireless Alarm – Power Adaptor			9349145011344
445R	Wireless Alarm – Receiver	12.5cm x 4cm x 2.5cm / 4.9″ x 1.6″ x 1.0″	0.012kg / 0.03 lb (Including batteries)	9349145011320
445T	Wireless Alarm – Transmitter	8.5cm x 6.8cm x 2cm / 3.3″ x 2.7″ x 0.8″	0.085kg / 0.19 lb (Including batteries)	9349145011337

GLOBAL MEDICAL DEVICE NUMBER (GMDN)

12585

Cleaning

CLEANING METHOD

Wipe clean. Do not submerge in liquid.

MAXIMUM WASHING TEMPERATURE

N/A

DETERGENT

Use a mild hospital grade disinfectant.

DRYING METHOD

Air dry in the shade.

CLEANING WARNING

Only use and store the product when it is dry. Test your cleaning chemicals on a discreet area to make sure it will not damage the material.

Important

Battery life depends on usage and alarm frequency. Under typical conditions, the included batteries should last several months.

Battery Compartment Security: The Transmitter and Receiver are supplied with Phillips head battery compartment screws and a small screwdriver. We recommend people use these screws to secure the battery compartment after installing the batteries. This helps prevent the battery cover from being accidentally opened or batteries removed. If you prefer easier access for future battery replacement, the battery compartment may also be left unsecured.

Important: Metal objects can interfere with wireless signals and may reduce the operating range of the alarm system. Large metal items such as bed frames, medical equipment, cabinets, or reinforced walls can partially block or reflect the signal between the Transmitter and Receiver. To ensure reliable operation, place the Receiver where it has a clear path to the Transmitter whenever possible, and avoid positioning either device directly against large metal surfaces. If using multiple devices simultaneously, the distance between each Receiver must be at least 30cm. Always test the system after installation to confirm that the alarm signal is received correctly.

Warranty: Chair Pad – 6 Months | Floor Pad – 12 months | Transmitter & Receiver – 12 Months.

Warning: Choking Hazard. The Alarm Box and Nurse Call plug includes a small component as part of the design. This product may not be suitable for an individual who has a tendency to place inedible objects in their mouth.

FAQ's

Choosing Between Wired and Wireless Alarms

HOW DOES THE ALARM WORK?

🔌 Wired: Each alarm pad plugs into an Alarm Box or Nurse Call System with a wired cable. The alarm noise can come directly from the Alarm Box, or alert through a facility’s Nurse Call System.

📶 Wireless: Each alarm pad plugs into a Transmitter. When the alarm is activated, the Transmitter sends a wireless signal to the Receiver which makes an alarm noise, or alerts a facility’s Nurse Call System.

IS INSTALLATION COMPLICATED?

🔌 Wired: Simple plug-and-play setup with no pairing required.

📶 Wireless: Requires initial pairing between the Transmitter and Receiver.

WHAT SET-UP OPTIONS ARE AVAILABLE?

🔌 Wired: Each pad generally needs its own sounding Alarm Box or Nurse Call Plug attachment. However, if using two alarm pads in close proximity (eg. a Stand Up Floor Alarm on either side of a bed), a Y-Connector can be used to run two pads into a single Alarm Box or Nurse Call Plug. One pad cannot be plugged into multiple Alarm Boxes.

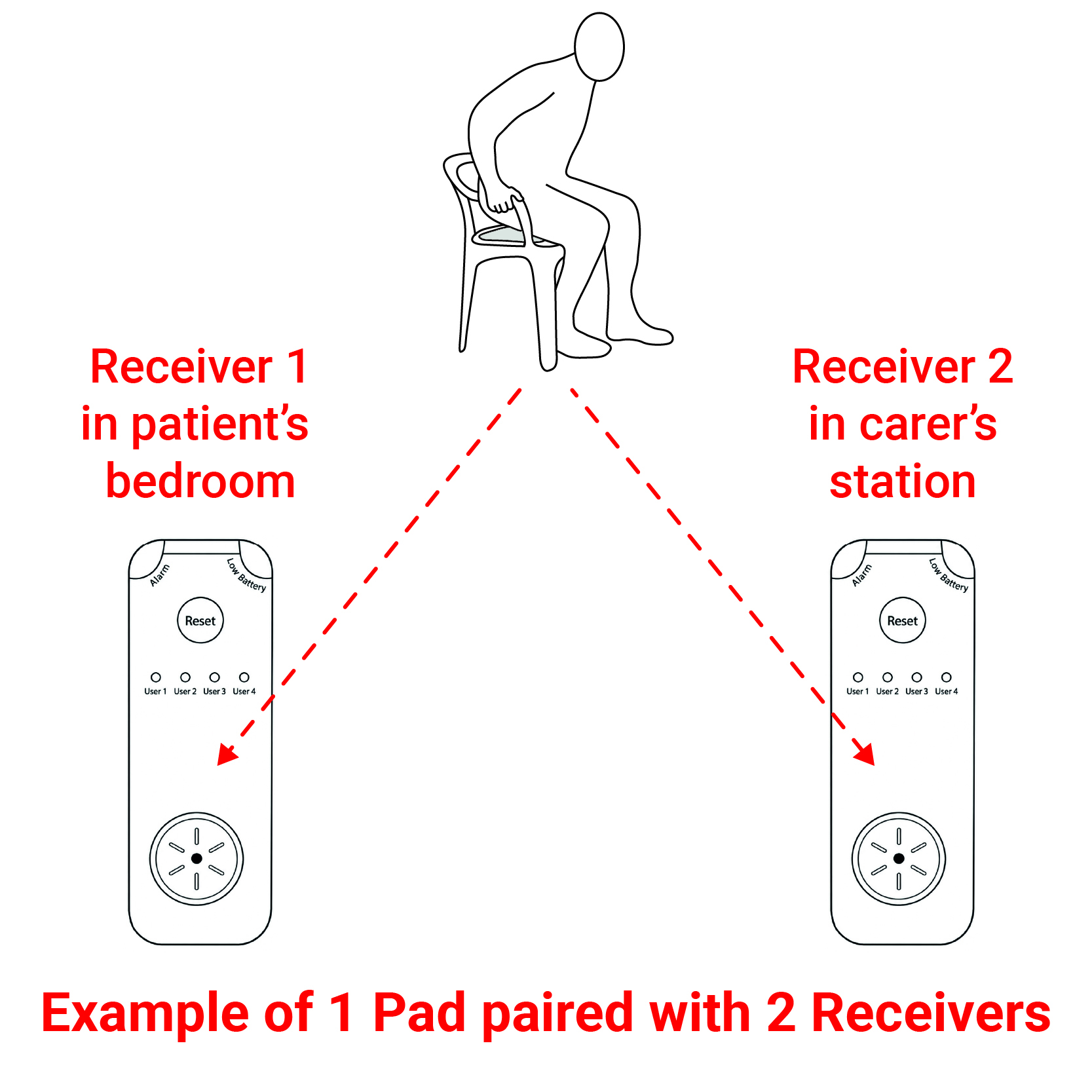

📶 Wireless: Multiple pairing options are available. For example, up to four alarm pads can be paired to one Receiver, or one alarm pad can sound through multiple Receivers.

WHICH TYPE HAS THE LONGEST RANGE?

🔌 Wired: Limited by the length of the cable, although 10m/33ft Stand Up Alarm Extension Cords are available to increase the distance between the pad and the Alarm Box.

📶 Wireless: Allows greater freedom of placement, with the Receiver able to be located elsewhere in the home or facility without needing to use cables. Maximum range is approx. 50 metres / 165 feet.

WHICH TYPE HAS FEWER TRIP HAZARDS?

🔌 Wired: Cables may create a trip hazard if not routed carefully. Alarms come with a sign to alert carers and staff that an alarm is in place.

📶 Wireless: No cable between the Transmitter and Receiver means tripping hazards are reduced.

WHICH TYPE IS MORE RELIABLE?

🔌 Wired: Direct wired connection with no wireless signal involved generally experiences fewer false alarms caused by signal interference.

📶 Wireless: Uses a wireless connection, allowing flexible placement. Walls, metal objects, and other environmental factors may weaken the strength of the wireless signal.

WHAT ARE THE BATTERY REQUIREMENTS?

🔌 Wired: Powered by a 9V battery in the alarm box. Nurse Call Plug versions do not require batteries and plug into wall power outlet.

📶 Wireless: Requires two alkaline batteries in both the Transmitter (AAA) and Receiver (AA). An optional power adaptor is available for the Receiver only.

WHICH TYPE REQUIRES LESS MAINTENANCE?

🔌 Wired: Fewer electronic components to monitor. The alarm should be tested regularly to ensure it is working properly.

📶 Wireless: Batteries should be checked and replaced periodically. The alarm should also be tested regularly to ensure it is working properly.

CAN THE INTERNAL CONTACT SHEETS BE REPLACED?

🔌 Wired: Replacement contact sheets are available if the original contact sheet becomes damaged or stops working. All alarm pads work with internal contact sheets that wear down with use.

📶 Wireless: Wireless alarm pads cannot be opened to replace contact sheets. If internal contact sheets break or the short cable that connects the pad to the Transmitter is damaged, a new pad will need to be purchased.

WHICH TYPE IS BETTER FOR SHARED ROOMS?

🔌 Wired: Alarm sounds directly at the bed or chair location, unless it is plugged into a Nurse Call System or a Stand Up Alarm Extension Cord is being used.

📶 Wireless: Receiver can be placed with a caregiver, at a nursing station, or in another room. The Receiver can also be plugged into a Nurse Call System.

WHO SHOULD CHOOSE A WIRED OR WIRELESS ALARM?

🔌 Wired: Ideal for users who want a simple solution and are comfortable with a cable connection.

📶 Wireless: Ideal for users who want greater flexibility, reduced cable clutter, or remote notification capability.
