Bed Arm Abductor 90 Degrees

Name: Bed Arm Abductor 90 Degrees
SKU: 2800-VARIOUS
Availability: InStock

Units of Measurement: Each

SKU: 2800-VARIOUS Categories: Bed Positioning Support Solutions, Theatre & Post Operative Care

From AUD $160.00

Description

WHAT IS THIS PRODUCT?

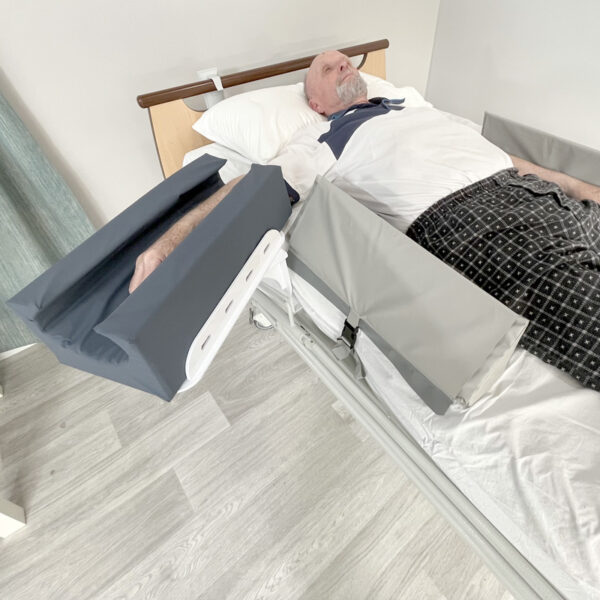

The Bed Arm Abductor 90 Degrees is designed to provide comfortable support for patients requiring an arm to be positioned at an angle during treatment or recovery.

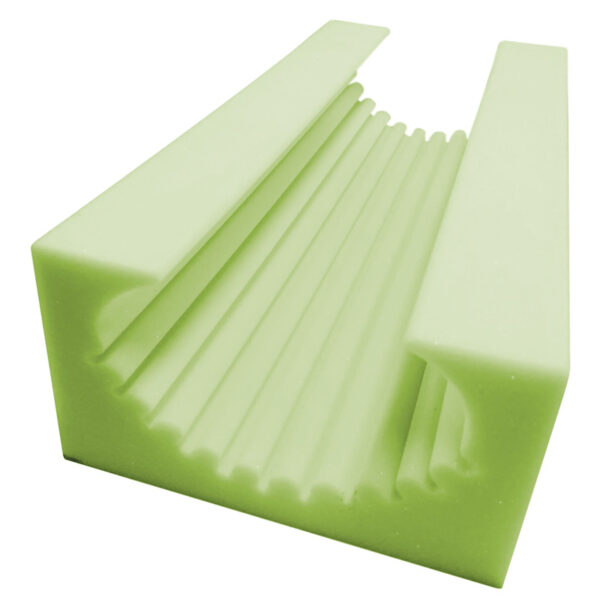

There is a soft, wipeable Heat Sealed convoluted foam Arm Cushion to reduce pressure on the arm while maintaining correct positioning. For patients who need both arms to be held in position, a Bed Arm Abductor can be used on each side of the bed.

WHO IS THIS PRODUCT SUITABLE FOR?

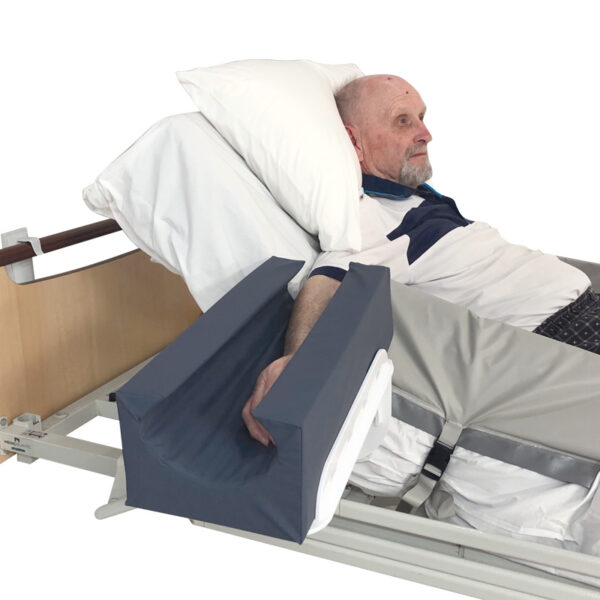

Intended for use in burns units and other clinical settings, the device can be used in both fully reclined and raised bed head positions. Angle and height adjustments are made using the two hand nuts.

BRIEF INSTRUCTIONS FOR USE

Note: This item requires some basic assembly before use.

1. Position the Under Mattress Board:

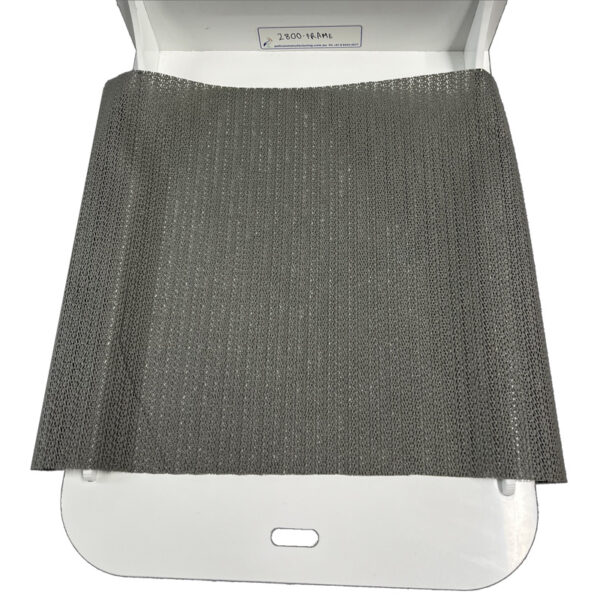

A Miracle Grip sleeve is included to help prevent the Under Mattress Board from slipping on the bed frame.
Align the Arm Platform approximately to where the patient’s shoulders will be when they are in the bed.
Place the Under Mattress Board underneath the mattress.

2. Adjust the Arm Platform Position:

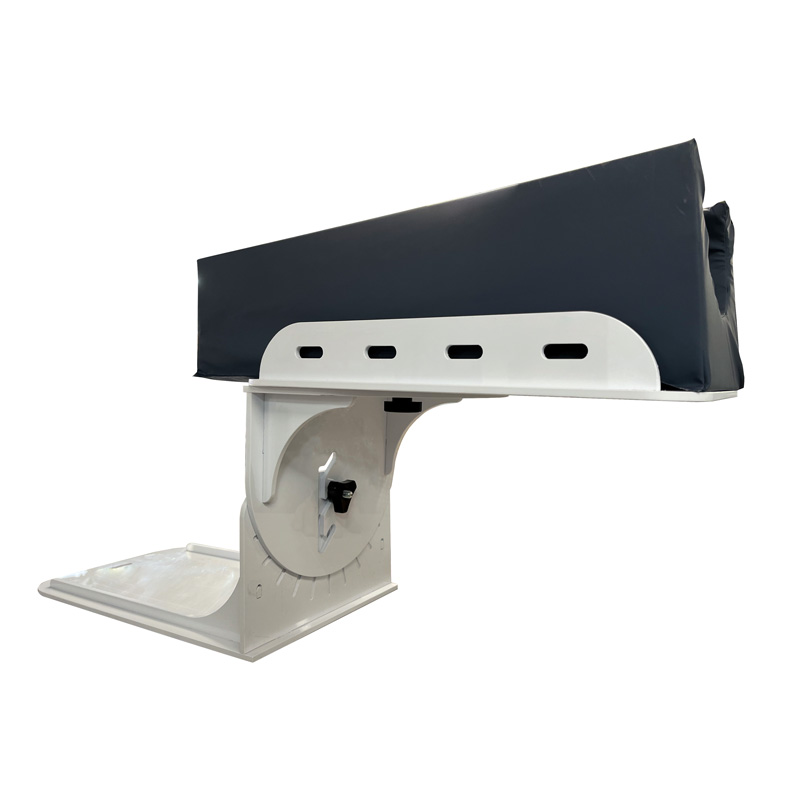

Loosen the hand nuts underneath the Platform until the parts can move and swivel freely. Adjust the height first and then the horizontal angle.
There are three height slots to allow for different mattress depths and also keep the Arm Platform level when used with a raised bed head.

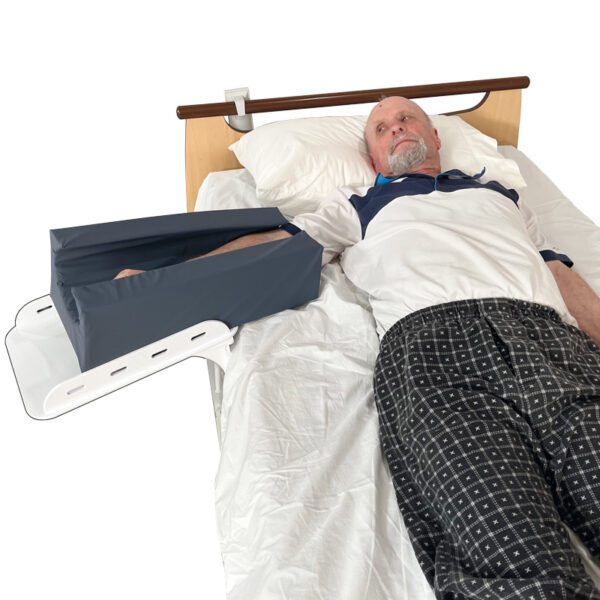

The Platform can swivel horizontally to allow the arm to be positioned at 90° or angled inward toward the body.
Once the desired position has been set, re-tighten both hand nuts.

3. Place the Arm Cushion:

Place on the Platform with the high end of the Cushion under the hand.

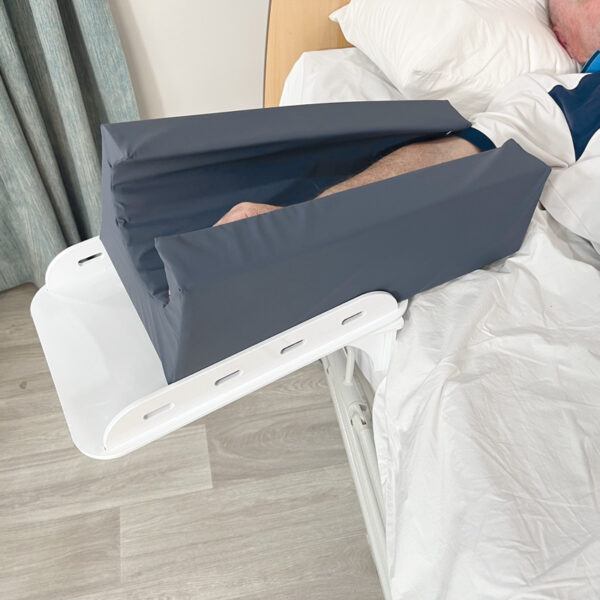

The Cushion can be positioned near the body, or further away for the patient’s comfort.

4. Secure the Arm strap (optional use if needed):

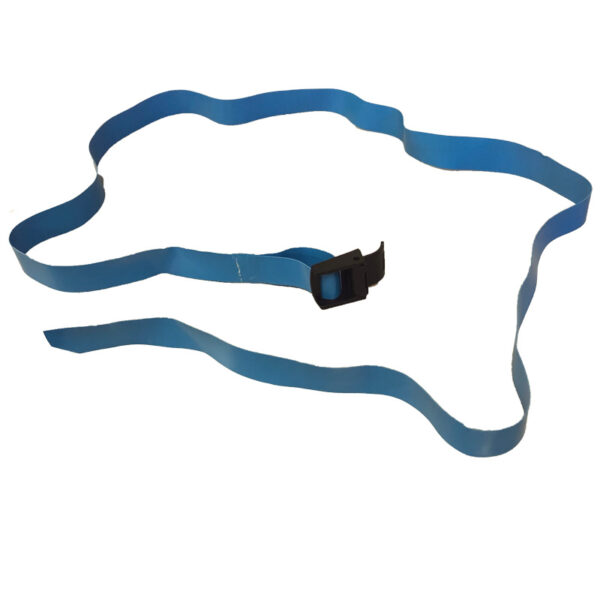

To help secure a patient who may move their arm or have contractures, thread the wipeable material Arm strap through the slots on the Platform and over the Arm Cushion in a zig-zag pattern (see video).

WHAT IS THIS PRODUCT MADE FROM?

Plastic, Heat Sealed wipeable material, foam.

Technical

STOCK KEEPING UNIT (SKU), SIZE, WEIGHT, GLOBAL TRADE ITEM NUMBER (GTIN)

SKU	OPTION	WIDTH	LENGTH	WEIGHT	GTIN
2800-FRAME	FRAME	30cm / 11.8″	80cm / 31.5″	3.1kg / 6.8lbs	9349145002403

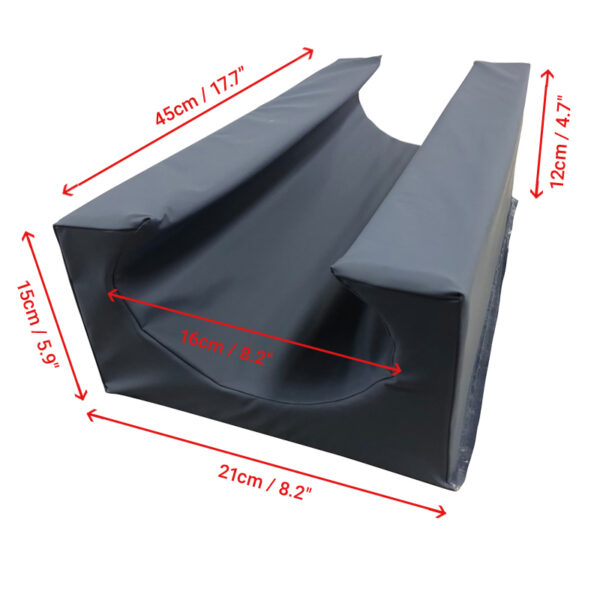

2800-AC	ARM CUSHION	20.8cm / 8.2″	45.7cm / 18″	0.33kg / 0.72lbs	9349145009136

GLOBAL MEDICAL DEVICE NUMBER (GMDN)

35218

Cleaning

CLEANING METHOD

Wipe clean.

MAXIMUM WASHING TEMPERATURE

N/A

DETERGENT

Use a mild hospital grade disinfectant.

DRYING METHOD

Air dry in the shade.

CLEANING WARNING

Only use and store the product when it is dry. Test your cleaning chemicals on a discreet area to make sure it will not damage the material.

Important

Do not place drinks or other objects on the Arm Platform. Under no circumstances should a person attempt to sit on any part of the Arm Bed Abductor, as this may result in falls or injury.
