Bodex Sling

Name: Bodex Sling
SKU: 783-VARIOUS
Availability: InStock

Units of Measurement: Each

SKU: 783-VARIOUS Category: Hoist Slings Equipment

From AUD $544.00

Description

WHAT IS THIS PRODUCT?

This sling is quick to fit and easy to remove. It resembles a Bosun’s Chair more than a conventional lifting sling.The advantage of this sling is that it facilitates undressing people while they are in it, saving two unnecessary lifts required to put a person on a bed for undressing and dressing.

While it can be left behind the person without causing adverse pressure problems, it is so easy to put on and remove that most carers prefer to take the sling off rather than leaving it behind a person.

The sling can pick up someone from the floor or bed. However, since it lacks a head section, a carer should assist the person in sitting up before fitting the sling. If the person is lying down, support their head and shoulders until they are in a seated position. Handles are provided at the back of the sling to help guide person into chairs. Usually, as the person is already in a good sitting position, they can be lowered directly into a chair. This is particularly helpful if the chair
has positioning inserts.

Click here to view the full range of Hoist Slings.

WHO IS THIS PRODUCT SUITABLE FOR?

This sling is suitable for someone who can be safely transferred using a hoist with keyhole plate reattachments.

BRIEF INSTRUCTIONS FOR USE

For the waist section and attach the buckle.

Pull down the leg sections next to each thigh, then up in between the legs.

Attach all keyhole plates to the studs on the hoist.

WHAT IS THIS PRODUCT MADE FROM?

Nylon, webbing, plastic.

Technical

Safe Working Load: 220kg / 485lbs (In accordance with ISO 10535:2011)

ARTG: 99879

GMDN: 40535

Attachment Method: Keyhole plate tilt frame hoists

Sizes:

Item #	Waist Measurement	Waist Measurement (cm)	Waist Measurement (“)	Webbing Colour
785E	Extra Small	65 – 93	25.5 – 36.5	Brown
785	Small	77 – 93	30 – 36.5	Red
783	Large	87 – 140	34 – 55	Green
783W	Large Wide	98 – 150	38.5 – 59	Grey

Special sizes made on request.

Materials Available:

Material	Photo	Type	Notes
Standard White		Nylon	This is called a solid material, as it is not a Mesh or Netting material that has holes in the material. The Nylon has some slipperiness, to make it easier to slide down behind a Patient’s back, when they are sitting in a chair.

See the FAQ tab for more information.

Cleaning

CLEANING METHOD – SEWN VERSION

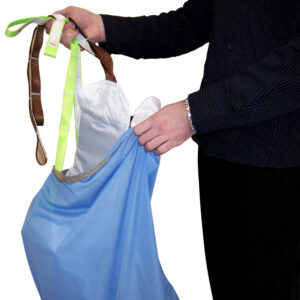

Machine or hand wash .We recommend using a Pelican Washing Bag to help contain the product.

MAXIMUM WASHING TEMPERATURE

80°C / 176°F.

DETERGENT

Use a mild detergent. Do not use fabric softener. Fabric softener and excessive chlorine or bleach can damage any material, including Sling material. Slings should be continuously inspected for deterioration and discolouration, as this may be an early warning of possible failure.

DRYING METHOD

Air dry in the shade. Alternatively, tumble dry on a cool temperature and make sure the drum is cool.

CLEANING WARNING

Only use and store the product when it is dry.

Important

General Manual Handling Warning: Manual Handling products are designed to assist Carers to help Patients. They will not make the Carer stronger or fitter, but with correct training and use of the products, should make manual handling easier and safer for both staff and Patients. When training, practise with an able-bodied colleague. If any procedure is not comfortable or is difficult and puts the Carer or Patient in a dangerous position, the participants should call out to stop the manoeuvre, recover and recommence. Never jeopardise your health by straining, twisting or being incorrectly positioned when manual handling. Always select the most appropriate equipment for the Patient’s current condition and if in doubt, use mechanical equipment. Ask your Manual Handling adviser for individual guidance.

Correct Buckle Threading: Click here to view a video showing the correct way to thread a buckle onto the webbing. It is vital that the buckles on this product are correctly fitted. Contact us if you need to order a replacement buckle if one is broken.

Attaching Brand New Keyhole Plate Slings to a Hoist: View our video guidance here.

General Keyhole Plate Sling Information: Click here for general information, including filing down Keyhole Plates which are too tight. This advice is applicable for the version of this product which uses Keyhole Plates.

Warning: Inspect slings before every use. If any damage is found the Sling must be withdrawn from service and repaired, if possible.

Disposal: When the Sling is ready for disposal, we suggest the Lifting Straps are cut off, so it cannot be used with another Patient.

Sling & Hoist Compatibility: Click here for more information.

Sling Life Expectancy: Click here for more information.

What the International Standard ISO10535:2011 requires for Period Sling Inspections and Sling Labelling: Click here for more information.

Sling Inspection Before Use Checklist: Click here to download.

6 Monthly Thorough Sling Inspection Checklist: Click here to download.

Online Sling Inspection Training: For excellent guidance on how to do inspections, check out this course on the Udemy learning platform. On completion of the course you will receive a certificate, which makes staff education simple. This training is in addition to the training offered by your organisation. The course covers:

How the do a Sling Inspection Before Use
How to do a 6 Monthly Thorough Sling Inspection
What the labelling requirements are
Example of sling damage
How to safely mark a sling

FAQ's

Do I need to do Sling inspections?

Yes – see the Important Information tab for more information.

What are the Sling inspection requirements?

See the Important Information tab for more information. We’ve paraphrased the International Standard 10535:2011 under licence, detailing exactly what is required.

Where can I find the inspection checklists?

See the Important Information tab for more information. We provide the following checklists:
