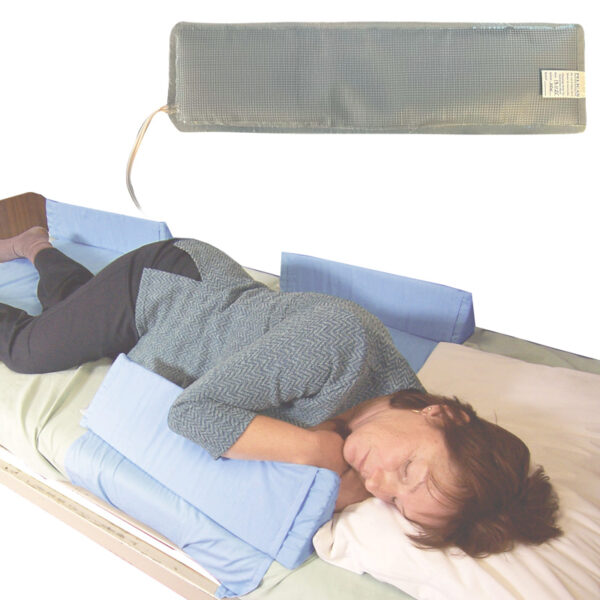

Bed Side Wedge Alarm Heat Sealed Pad

STOCK KEEPING UNIT (SKU), SIZE, WEIGHT, GLOBAL TRADE ITEM NUMBER (GTIN)

GLOBAL MEDICAL DEVICE NUMBER (GMDN)

12585

CLEANING METHOD – HEAT SEALED VERSION

Wipe clean.

MAXIMUM WASHING TEMPERATURE

N/A

DETERGENT

Use a mild hospital grade disinfectant.

DRYING METHOD

Air dry in the shade.

CLEANING WARNING

Only use and store the product when it is dry. Test your cleaning chemicals on a discreet area to make sure it will not damage the material.
Do not machine wash or submerse the Alarm Pad in water.

If the Alarm Pad becomes soiled, it should be disposed of and replaced.

Warranty: 12 months.

Warning: When using a double adaptor, if the patient’s Nurse Call button is removed from the adaptor, then the automatic Nurse Call system may not alert staff. There may be occasions when the facility does not want the patient to have a Nurse Call button as they may have dementia and be pushing the button for no reason. We understand that the patients should always have access to a Nurse Call button, so if this is removed, we recommend documenting this in their care plan. If the patient’s Nurse Call button is removed then the Pelican Stand Up Alarm can be plugged directly into the wall socket without using the double adaptor.

Choosing Between Wired and Wireless Alarms

HOW DOES THE ALARM WORK?

🔌 Wired: Each alarm pad plugs into an Alarm Box or Nurse Call System with a wired cable. The alarm noise can come directly from the Alarm Box, or alert through a facility’s Nurse Call System.

📶 Wireless: Each alarm pad plugs into a Transmitter. When the alarm is activated, the Transmitter sends a wireless signal to the Receiver which makes an alarm noise, or alerts a facility’s Nurse Call System.

IS INSTALLATION COMPLICATED?

🔌 Wired: Simple plug-and-play setup with no pairing required.

📶 Wireless: Requires initial pairing between the Transmitter and Receiver.

WHAT SET-UP OPTIONS ARE AVAILABLE?

🔌 Wired: Each pad generally needs its own sounding Alarm Box or Nurse Call Plug attachment. However, if using two alarm pads in close proximity (eg. a Stand Up Floor Alarm on either side of a bed), a Y-Connector can be used to run two pads into a single Alarm Box or Nurse Call Plug. One pad cannot be plugged into multiple Alarm Boxes.

📶 Wireless: Multiple pairing options are available. For example, up to four alarm pads can be paired to one Receiver, or one alarm pad can sound through multiple Receivers.

WHICH TYPE HAS THE LONGEST RANGE?

🔌 Wired: Limited by the length of the cable, although 10m/33ft Stand Up Alarm Extension Cords are available to increase the distance between the pad and the Alarm Box.

📶 Wireless: Allows greater freedom of placement, with the Receiver able to be located elsewhere in the home or facility without needing to use cables. Maximum range is approx. 50 metres / 165 feet.

WHICH TYPE HAS FEWER TRIP HAZARDS?

🔌 Wired: Cables may create a trip hazard if not routed carefully. Alarms come with a sign to alert carers and staff that an alarm is in place.

📶 Wireless: No cable between the Transmitter and Receiver means tripping hazards are reduced.

WHICH TYPE IS MORE RELIABLE?

🔌 Wired: Direct wired connection with no wireless signal involved generally experiences fewer false alarms caused by signal interference.

📶 Wireless: Uses a wireless connection, allowing flexible placement. Walls, metal objects, and other environmental factors may weaken the strength of the wireless signal.

WHAT ARE THE BATTERY REQUIREMENTS?

🔌 Wired: Powered by a 9V battery in the alarm box. Nurse Call Plug versions do not require batteries and plug into wall power outlet.

📶 Wireless: Requires two alkaline batteries in both the Transmitter (AAA) and Receiver (AA). An optional power adaptor is available for the Receiver only.

WHICH TYPE REQUIRES LESS MAINTENANCE?

🔌 Wired: Fewer electronic components to monitor. The alarm should be tested regularly to ensure it is working properly.

📶 Wireless: Batteries should be checked and replaced periodically. The alarm should also be tested regularly to ensure it is working properly.

CAN THE INTERNAL CONTACT SHEETS BE REPLACED?

🔌 Wired: Replacement contact sheets are available if the original contact sheet becomes damaged or stops working. All alarm pads work with internal contact sheets that wear down with use.

📶 Wireless: Wireless alarm pads cannot be opened to replace contact sheets. If internal contact sheets break or the short cable that connects the pad to the Transmitter is damaged, a new pad will need to be purchased.

WHICH TYPE IS BETTER FOR SHARED ROOMS?

🔌 Wired: Alarm sounds directly at the bed or chair location, unless it is plugged into a Nurse Call System or a Stand Up Alarm Extension Cord is being used.

📶 Wireless: Receiver can be placed with a caregiver, at a nursing station, or in another room. The Receiver can also be plugged into a Nurse Call System.

WHO SHOULD CHOOSE A WIRED OR WIRELESS ALARM?

🔌 Wired: Ideal for users who want a simple solution and are comfortable with a cable connection.

📶 Wireless: Ideal for users who want greater flexibility, reduced cable clutter, or remote notification capability.
